Home>Products>Steel Structure Buildings>Hight quality of steel structure workshop/warehouse
Hight quality of steel structure workshop/warehouse
- XGZ
- Shandong, China (Mainland)
- 100 Square Meter/Square Meters
- US $50 - 90/ Square Meter
- 45days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 50000 Ton/Tons per Year
- Qingdao XGZ Steel Structure Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Details
Standard: | GB | Grade: | Q235 Q345B | Dimensions: | Customer's Request |
Place of Origin: | Shandong, China (Mainland) | Brand Name: | XGZ | Model Number: | Q345B Q235B |
Type: | Light | Application: | Steel Workshop | Color: | grey /red/white |
steel column and beam: | H section steel | Purlin: | C" Section steel | Roofing: | Sandwich Panel |
Use: | warehouse/workshop/office building/aircraft hanger |
Product Description
NO.1 Product Description
NO.2 Projects

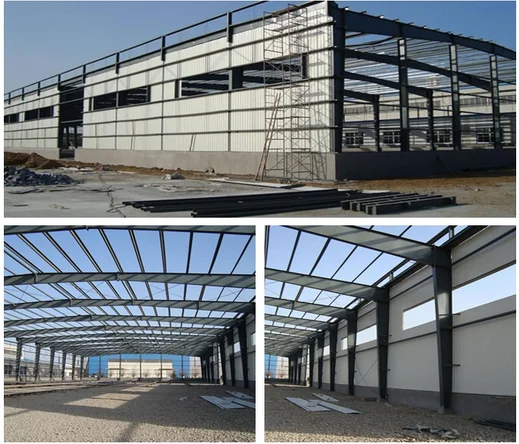

Project 1
This steel workshop project’s design,construction increase the workshop usage in max way.
1. Main steel structure: welded H steel; Q345B materials.
2. Purlin: C section steel;
3. Roof panel: fiberglass 50mm sandwich panel;
4. Wall: with 1.2m brick wall ,75mm corrugated sandwich panel above 1.2m;
5. Tie bar: Q345B round tube;
6. Brace: round steel;
7. Lateral and column bracing: round steel;
8. Knee brace: hot- rolled angle steel;
9. Trims,flashing: color steel sheet;
10.Gutter:color steel sheet;
11.Downpipe: PVC;
12.Door: sandwich panel door;
13.Window: Aluminium window (single glass)
Project 2
The Leiting Heavy Project - metallurgical automatic transmission equipment assembly base steel structureproject. Located in Qingdao High-tech Zone, the span is 120 meters, total length is 198.1 meters; eave height is 13.2 meters; the ridge height is 18.6 meters.
The workshop steel column is lattice without anchor bolt that has a strict requirement for the steel column’s perpendicularity, elevation and axis deviation. The column bracing, welded by channel steel and angel steel, is double layer installation. Roof horizontal bracing is continuous connection by angel steel; the middle column crane beam is divided into two layers. All crane beams are installed walkway plate and guardrail and each walkway plate has two ladders and escalators. The wall panel use v-780 type wave board; the wall between the upper and the lower window is the horizontal installation, the upper window is skylight plate, therefore the wall installation must be vertical to avoid clearance.
Project 3
Main material: H Beam
Circular steel, small angle steel. Its light weight allows the emission of piling, therefore it helps to save construction time.
The roof and wall are made of sandwich panel of color corrugated steel sheet and feature high tensile strength and durability. Filled with glass wool, the core sandwich panel between the internal and exterior roof panels and wall panels has a low thermal conductivity, ensuring the good heat insulation of the steel workshop.
Kindly provide the following importance technical parameters for quotation please:
(1) Building size : length * width *height ;
(2) Wind speed (max speed);
(3) Snow load (kg/m2 in max situation);
(4) Earth quake grade (if have) ;
(5) Live load and dead load for roof and flooring(special for mutli-floors building);
(6) The requirements for window and door;
(7) Max height and weight for crane to lift;
NO.3 Production Line
NO.4 About us
Product range
Steel structure building,steel workshop and warehouse,container house ,prefabricated house etc.
Exporting countries:
Our products have been exported to more than 60 countries and regions,such as Canada,Australia,Brazil,Germany,New zealand ,Russia ,Panama,US etc.
Corporate Strength :
Registered capital: USD 5 Million
Employees Total: More than 600
Designers Total: More than 40
Factory Size:5 factories, total area more than 145000 Square meters
Product Description:
Standard: GB, ISO9001: 2008,European,ASTM,BS.
Certificate: SGS,BV,CE
Terms:
Payment: T/T or by L/C(30% prepaid as deposit, the balance 70% before shipment)
Delivery time: 15~40 days, usually as customer’s order
Shipment: 20’GP, 40’GP, 40’HQ, 40’OT or in bulk
