design warehouse building plans
- Xinguangzheng
- Shandong, China (Mainland)
- 1 Square Meter/Square Meters warehouse buildign
- US $30 - 85/ Square Meter
- Shipped in 25 days after payment
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 50000 Ton/Tons per Month
- Qingdao XGZ Steel Structure Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Details
Place of Origin: | Shandong, China (Mainland) | Brand Name: | Xinguangzheng | Model Number: | warehouse building plans |
Product name: | design warehouse building plans | design software: | Auto CAD,PKPM,MTS,3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc | Type: | L Shape |
Size: | 33m * 20m * 6.6m | Structure System: | Light Steel Structure | Main Steel Structure: | welded H steel, Q345B materials |
Secondary Framing: | C section Purlin | Roof Cladding: | EPS 50mm sandwich panel | Wall Cladding: | with 1.2m brick wall ,EPS 50mmm sandwich panel above 1.2m |
Application: | warehouse from Gabon customer |
Product Description
Design warehouse building plans
Warehouse building is the government project for our Gabon customer, the special shape is L type, it is more complex than common type . warehouse Size: 33m * 20m *6.6m. We design and manufacture the warehouse building
Product Description
Warehouse building design Technical Parameters :
Size | Length* Width* Eave Height |
209.8m*79.8m*8m |
Main components | Primary Steel Structure Column and Beam |
Welded H section steel, Q345B Materials |
Secondary Framing Purlin |
C Section Purlin | |
Brace | Round steel is supplied with knee bracing and other supporting parts | |
Roof Panel | EPS 50mm sandwich panel | |
Wall Panel | EPS 50mm sandwich panel | |
Brick Wall | 1.2m | |
Door | sandwich panel Door | |
Window | steel plastic window (single glass) | |
Service | We can make quotation according to customer's drawing or requirement; (size by length/width/height and wind speed), offering a free design drawing and all detailed drawings for installation. | |
Design, Fabrication and Installation | ||
Design software: Auto CAD,PKPM,MTS,3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc |
Drawing Design
We supply warehose building plans, construction drawing design and other detailed drawing for free charge
Warehouse building plans
Warehouse building Wall purline layout design drawing
Packaging & Shipping
warehouse building
Guide Installation

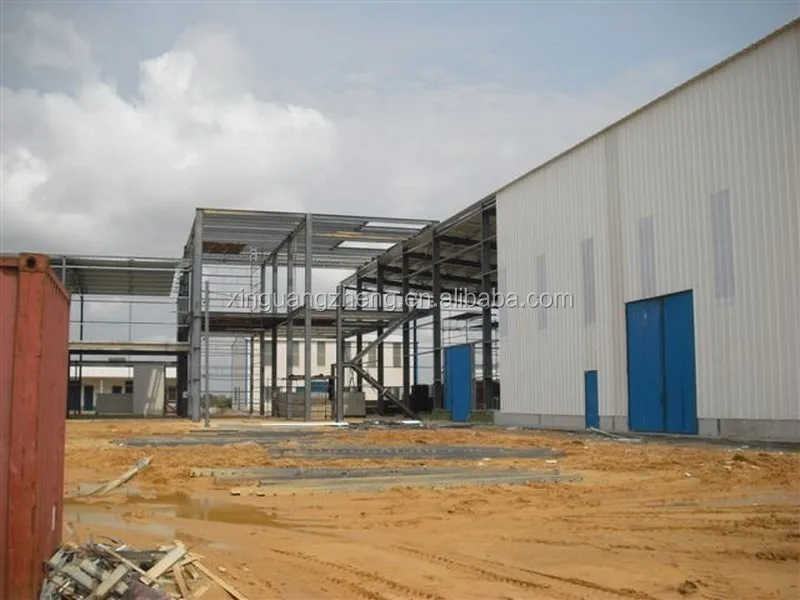

Warehouse building installation: As request by customer, our engineer and international sales manager went to Gabon to guide installation. It is admired by customers.
Company Information
Qingdao Xinguangzheng Steel Structure Co., Ltd. Since 1996 with 5 Factories
One-Top Service: Design, Manufacture and Install Steel Structure Warehouse, Steel Structure Workshop
Company Scale: Total area:150000 sqm Factory: 80000sqm Office: 5000sqm 800 employees
Production Capacity: H Section Steel: 8400T/Month C Section Steel: 700T/Month Sandwich Panel: 71000M/Month Color Steel Sheet: 310000M/Month
Exported to +90 countries: Ethiopia, Tanzania, Nigeria, South Africa, Algeria, Dubai, Saudi Arabia, Thiland, Australia, France, Germany etc. around the world.
Certification: Passed Approval of CE, BV, SGS and ISO:9001:2008
FAQ
1. What kind of company you are?
We are Prefabricated Warehouse Building Manufacturer located in Qingdao China, We were gaining good reputation among our customers for our professional, warm and thoughtful service. Because we know that a long terms business based on the quality control, price, packing, delivery time etc.
2. Does your company is a factory or trade company?
We are factory, so you will enjoy the best price and competitive price. Our factory covers an area of 150,000 square meters.
3. Whats the quality assurance you provided and how do you control quality ?
Established a procedure to check products at all stages of the manufacturing steel structure warehouse process - raw materials, in process materials, validated or tested materials, finished goods, etc.
4. Can you offer designing service?
Yes, we have more than 100 design engineers. We could design full solution drawings as per your requirments. They use software: Auto CAD,PKPM, MTS, 3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc.
5. Do you offer guiding installation on site overseas?
Yes, we can provide the service of installation, supervision and training by extra. We can send our professional technical engineer to surpervise installation on site overseas. Besides, We also have our own abroad guiding installation team consisting of more than 30 people.
They have succeeded in many countries, such as Iraq, Dubai, South Africa, Algerial, Ghana, Gabon, Tajikistan, Burkina Faso, Panama, Australia.
Our excellent design team will design the prefabricated warehouse building for you. We can quote If you give the following information.
1. Location (where will be built? ) _____country, area
2. Size: Length*width*height _____mm*_____mm*_____mm
3. Live load on roof(KN/M2), live load on second floor(KN/M2) if have
3. Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4. Snow load (max. Snow height) _____kn/m2, _____mm
5. Anti-earthquake _____level
6. Brickwall needed or not If yes, 1.2m high or 1.5m high
7. Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels, Corrugated steel sheet with fiber glass wool will be suggested; If not, the Corrugated steel sheet will be ok. The cost of the latter will be much lower than that of the former.
8. Door quantity & size _____units, _____(width)mm*_____(height)mm
9. Window quanity & size _____units, _____(width)mm*_____(height)mm
10. Crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
11. Skylight belt, ventilator and any other accessories if needed.
